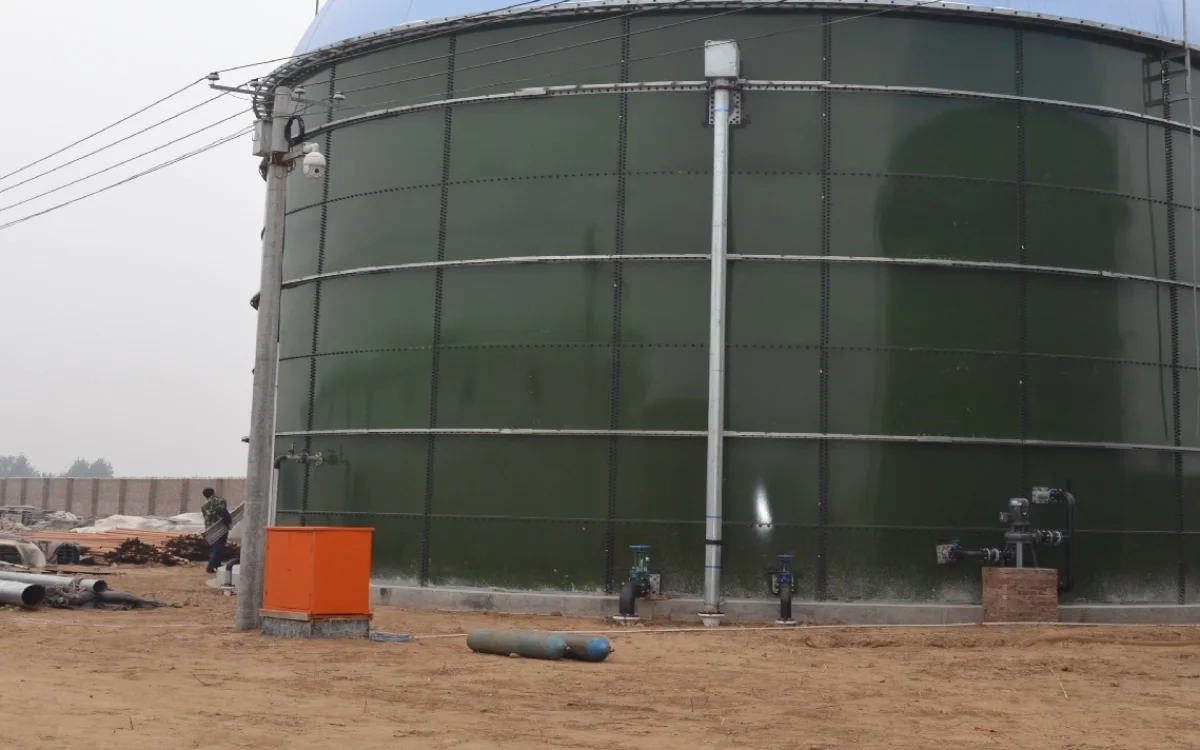

Landfill Gas Power Holder Project
Landfill gas power project reference for biogas holder sizing, gas variability, condensate, pressure control, safety interfaces, and RFQ data.
A landfill gas holder must be assessed with the collection network, condensate handling, treatment train, flare or generator, and safety controls.
A gas holder is a buffer within the landfill gas system
Landfill gas production changes with waste age, wellfield balance, rainfall, moisture, vacuum management, and operating conditions. A holder can smooth short-term differences between gas collection and gas use, but it does not remove the need to define gas composition, pressure range, condensate behavior, and downstream operating constraints.
Gas wells, headers, condensate knock-out, treatment, holder, flare, generator, controls, civil works, installation, testing, and commissioning ownership.
Define range data, not one representative gas test
Landfill gas is not a fixed utility. Flow and composition can drift over time and across operating zones. A sound inquiry identifies the available range of methane, carbon dioxide, H2S, moisture, condensate, and other known contaminants, together with expected seasonal and operational variation. A single laboratory result can be useful, but it should not be treated as the full design envelope.
The downstream equipment matters. A generator may have gas quality and stable-pressure expectations that differ from a flare. Gas upgrading, desulfurization, or compression can introduce additional pressure losses and control demands. The holder capacity and control strategy should be reviewed against the complete gas train, not selected in isolation.
Separate buffering from long-duration gas storage
A biogas holder may provide operational buffering rather than long-term inventory. The design team should define the required buffer volume, response time, minimum usable volume, maximum operating volume, and how the holder reacts to generator trip, flare unavailability, or gas-flow changes. This prevents capacity from being specified as an arbitrary number without a process basis.
Membrane material, anchoring, pressure-control components, instrumentation, and condensate routing should match the stated service conditions. The supplier should state the pressure basis and supplied accessories, while the responsible process and safety teams retain ownership of system-level relief sizing, hazardous-area decisions, and operating procedures unless those services are explicitly contracted.
Plan condensate and corrosion controls at the same time
Moisture and condensate can affect pipework, instruments, valves, and gas-treatment equipment. Low points, drainage, knock-out equipment, insulation, and heat tracing where required should be coordinated before installation. A gas holder proposal should identify its gas connections and drainage interface, but should not assume it solves all condensate-management duties across the site.
Corrosive components such as H2S, combined with humidity, can drive material selection and inspection strategy. Owners should document expected ranges, maintenance intervals, and replacement philosophy for consumable seals, hoses, or process components. Any claim of suitability must remain tied to the actual gas and environmental envelope.
Close the handover gap between equipment and operations
The project package should identify drawings, anchor layout, membrane information, pressure-control sequence, connection schedule, inspection and test records, installation instructions, and operating limits. These records let the owner understand which part of the gas chain each supplier has delivered and which interfaces must be verified during commissioning.
Before operation, the owner and EPC team should confirm isolation, safe venting, emergency response, access, control interlocks, condensate maintenance, and the response to low-flow and high-flow conditions. These are site-specific operational matters that must be approved through the responsible project and safety systems, not inferred from a product brochure.
RFQ and Next Steps
Submit gas flow and composition ranges, pressure basis, intended buffer role, environmental loads, connection schedule, treatment and energy-use interfaces, plus clear scope ownership for civil, controls, installation, and commissioning.
